10-32 (M) Input Port (Needle Valves)

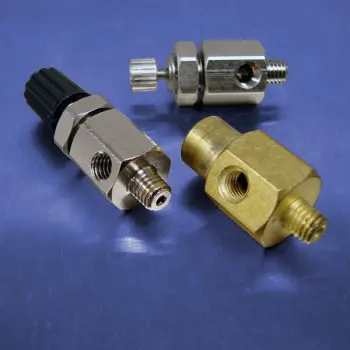

Click image to enlarge

Pneumadyne Needle Valves feature a finely threaded stem for the gradual adjustment of controlled flow in a pneumatic system. A variety of configurations are available to accommodate flow and plumbing requirements.

Part number NV-32 can be threaded into our Air Nozzle Base to control air pressure at that location.

Features
  • Compact size
  • Electroless nickel plated for corrosion resistance
  • Panel mountable
  • Low cracking pressure
  • Nuts and lockwasher included

Product FilesReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 6.2 to 6.8 scfm at 125 psi depending upon valve selected.

ProductsReturn to Top

Narrow Your Results By:



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
