Pneumatic Manifolds: 90° Output Ports

Contact Us Request for Quote
Narrow Your Results By
Click image to enlarge

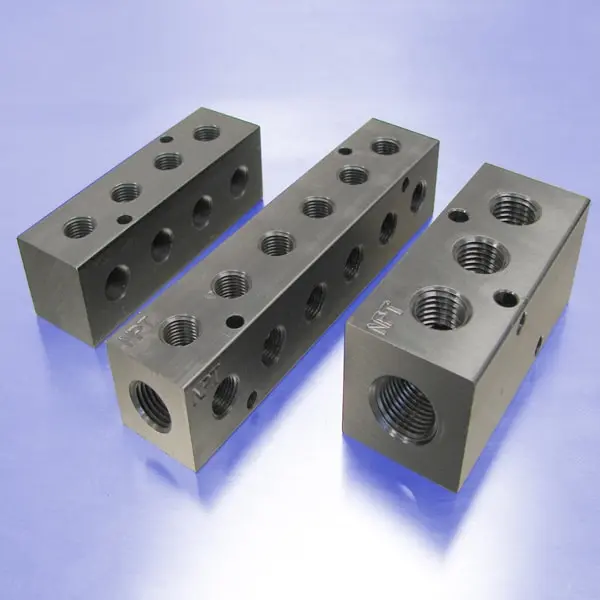

Aluminum manifolds with output ports at 90° are offered for plumbing convenience.  Two through 10-stations are available with 1/8 NPT (F), 1/4 NPT (F), 1/2 NPT (F) & 3/8 NPT (F) ports.

Features include:

  • Aluminum with black anodize for corrosion & wear resistance
  • Precision machined aluminum
  • Two input ports

Contact us for more information about our Dual Air Manifolds. Can't find what you're looking for? Request a Quote for your custom requirements.

2-Station 90-Degree Output Port Pneumatic Manifolds
2-Station (90° Output Ports)
3-Station 90-Degree Output Port Pneumatic Manifolds
3-Station (90° Output Ports)
4-Station 90-Degree Output Port Pneumatic Manifolds
4-Station (90° Output Ports)
5-Station 90-Degree Output Port Pneumatic Manifolds
5-Station (90° Output Ports)
6-Station 90-Degree Output Port Pneumatic Manifolds
6-Station (90° Output Ports)
7-Station 90-Degree Output Port Pneumatic Manifolds
7-Station (90° Output Ports)
8-Station 90-Degree Output Port Pneumatic Manifolds
8-Station (90° Output Ports)
9-Station 90-Degree Output Port Pneumatic Manifolds
9-Station (90° Output Ports)
10-Station 90-Degree Output Port Pneumatic Manifolds
10-Station (90° Output Ports)

Pneumatic Components & Systems Manufacturing

Pneumadyne is a manufacturer of standard miniature pneumatic manifolds. We can also assist you with design and engineering of custom pneumatic components or full pneumatic control systems.
