Pneumatic Manifolds with 90° Output Ports & 1.5” Spacing

Narrow Your Results By

Click image to enlarge

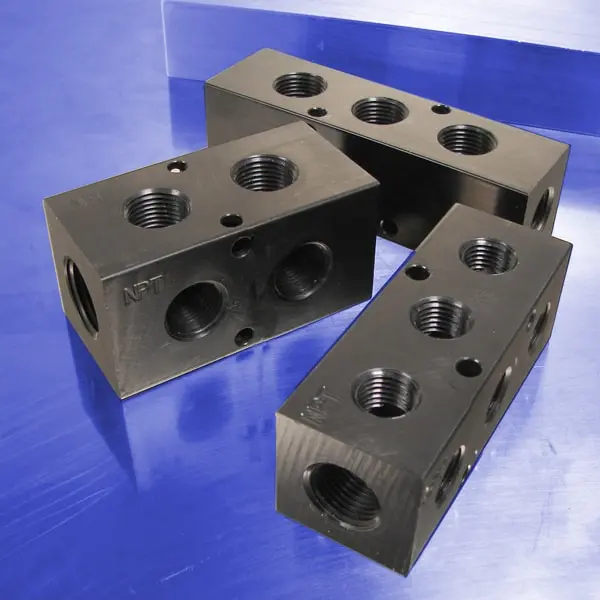

Pneumadyne manufactures special “wide” manifolds with 1.5” center-to-center port spacing and 90° outputs for all pneumatic applications. Our 90° pneumatic manifolds with 1.5” spacing are an easy and reliable way to distribute gases or fluids to multiple lines or implements from a single input. Threaded ports make for fast and easy installation.

Our family of 1.5” spacing, 90-degree manifolds are available in 2-port to 10-port configurations, and with 1/4, 3/8, or 1/2 NPT (F) threaded ports. Precision CNC machined from aluminum for light weight, durability, and corrosion resistance. A black anodized finish provides even greater corrosion protection.

90° Manifold Output Station Options

See individual product listings for additional information and specifications.

Contact Us for Multi-Station Pneumatic Manifolds with 90° Ports

With 1.5” output spacing and 90-degree ports, our pneumatic manifolds provide installation versatility for complex pneumatic systems, with durability and reliability for even the most demanding applications. Request a quote or contact us for specialized pneumatic manifolds with 90° ports.
