Press Release

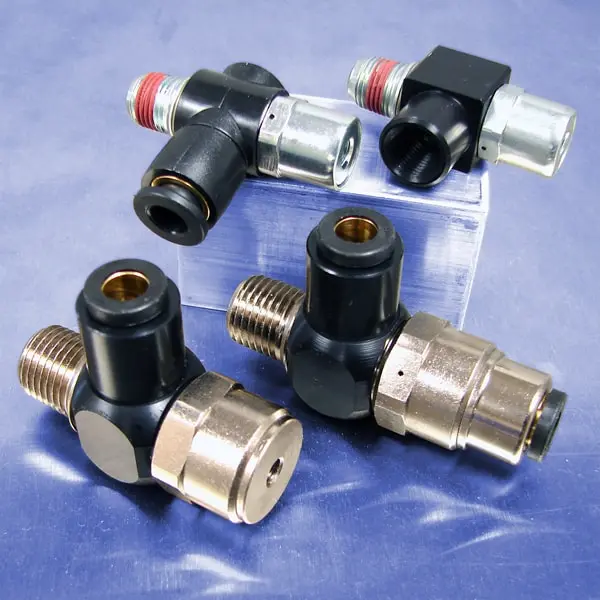

New Pilot Operated Check Valves

We are pleased to introduce our new Pilot Operated Check Valves which are ideal for reliably holding an actuator position in a variety of applications.  These rugged valves feature a 1/4 or 1/8 NPT output port which mounts directly on a cylinder, minimizing space requirements and easing installation.  The input port swivels to accommodate valve alignment and contains a 1/4 push-in or 1/8 NPT (F) connection to speed tubing installation.  With a maximum operating pressure of 150 psi, these valves provide flow rates up to 22 scfm at 100 psi.

Performance Data

Flow Rate:  5.7 to 22 scfm at 100 psi
Maximum Supply Pressure:  150 psi
Operating Pressure:  0 to 150 psi
Cracking Pressure: ranges from less than .1 to 10 psi

Features

• Swivel input port
• Direct cylinder mount
• 10-32 (F) or 1/4 push-in pilot ports
• Plated for corrosion resistance
• Low cracking pressure
• Thread sealant standard on output ports

Contact us for more information regarding our new Pilot Operated Check Valves
