1/4-28 UNF Threads (Stainless Steel Straight Connectors)

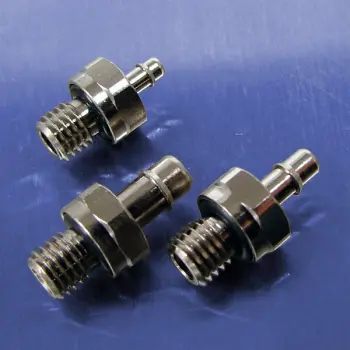

Click image to enlarge

Several of Pneumadyne's Pneu-Edge® fittings are available in 303 Stainless Steel for use in corrosive applications. The single-barb design provides a tighter grip and seal than multiple barbs resulting in permanent tubing installation. Our popular captured o-ring produces a superior seal and ensures a leak resistant fitting even when installed in a less than perfect sealing surface.

Contact the factory for configurations not shown.

Features
  • 303 Stainless Steel
  • Single-barb design provides a tight grip & seal
  • Precision machined, high quality fittings
  • Captured o-ring design provides a superior seal

Product FilesReturn to Top

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
