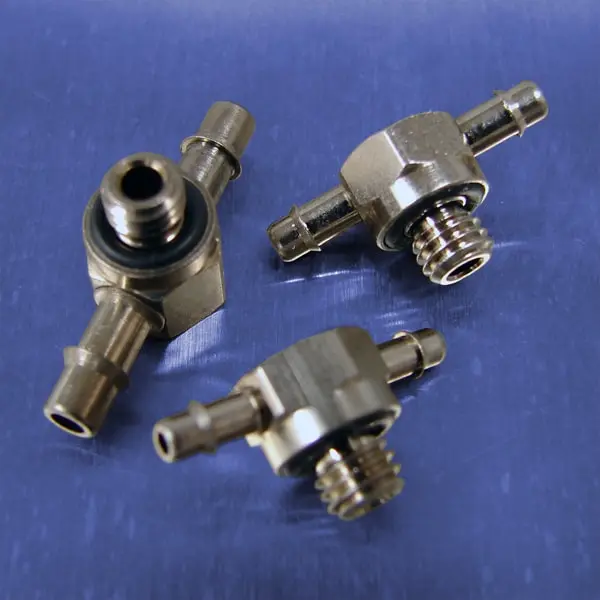

10-32 UNF Thread to Barb Tee Fittings

Click image to enlarge

Pneumadyne's Fixed Tees are available with barbs ranging in size from 1/16 to .170 tube Id. The Pneu-Edge® Tee features a single-barb design which offers a tighter grip and seal than standard multiple barbs. Solderless joint technology eliminates pull-out potential and ensures straight barb alignment. Our captured o-ring design provides a superior seal for a leak resistant fitting even when installed in a less than perfect sealing surface.

Features
  • Electroless nickel plated for corrosion resistance
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Captured o-ring design provides a superior seal
  • Solderless joint technology

Product FilesReturn to Top

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
