10-32 UNF Threads (Stainless Steel Straight Connectors)

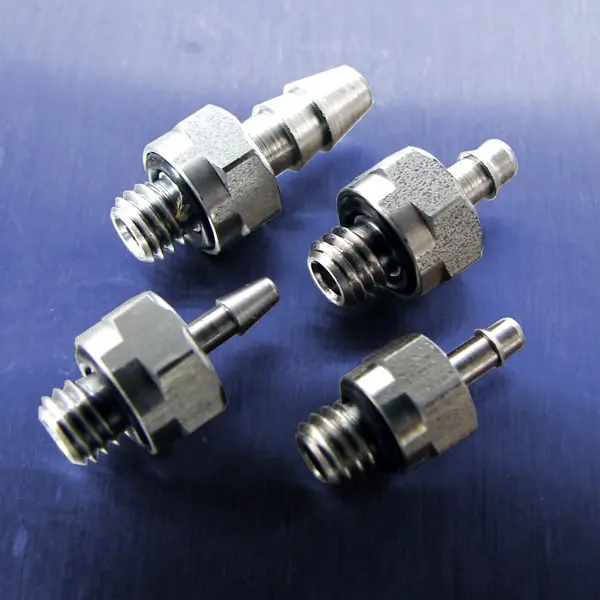

Click image to enlarge

Several of Pneumadyne's Straight Connectors are available in 303 Stainless Steel to for use in corrosive environments. Our captured o-ring design produces a superior seal for a leak resistant fit even when mated with a less than perfect sealing surface. Choose from our single-barb or multiple barb styles to fit your tubing requirements.

Contact the factory for configurations not shown.

Features
  • 303 Stainless Steel
  • Precision machined, high quality fittings
  • Captured o-ring provides a superior seal
  • Consistently sharp barbs to maintain tubing connection

Product FilesReturn to Top

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
