1/16 NPT Thread to Barb Tee Fittings

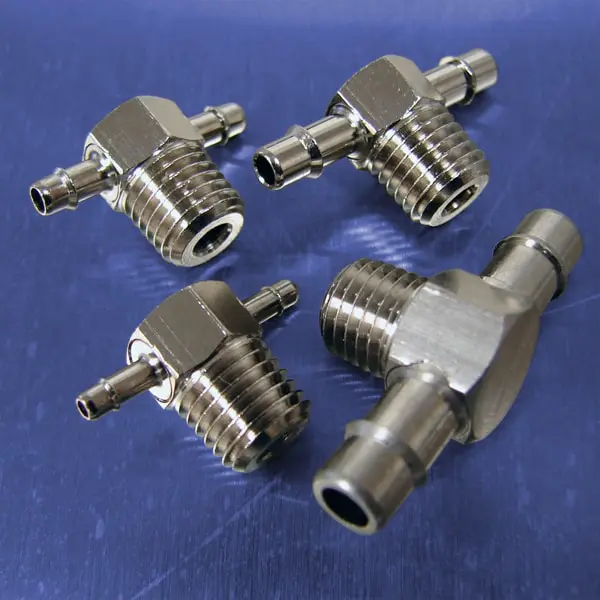

Click image to enlarge

Pneumadyne manufactures Fixed Tees with 1/16 NPT threads and barb sizes ranging from 1/16 to 3/16 to accommodate application requirements. Our popular Pneu-Edge® fitting features a single-barb design for a tighter grip and seal than multiple barb fittings. A smaller shank behind the barb allows polyurethane tubing to relax, resulting in permanent installation without the need for clamps. Our solderless joint technology eliminates pull-out potential and ensures straight barb alignment.

Features
  • Electroless nickel plated for corrosion resistance
  • Larger thru-hole for maximized flow
  • Smoother approach angle eases tubing installation
  • Solderless joint technology
  • Recommended for use with Polyurethane tubing

Product FilesReturn to Top

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
