1/16 Tube Id Barb Straight Connectors (10-32 UNF)

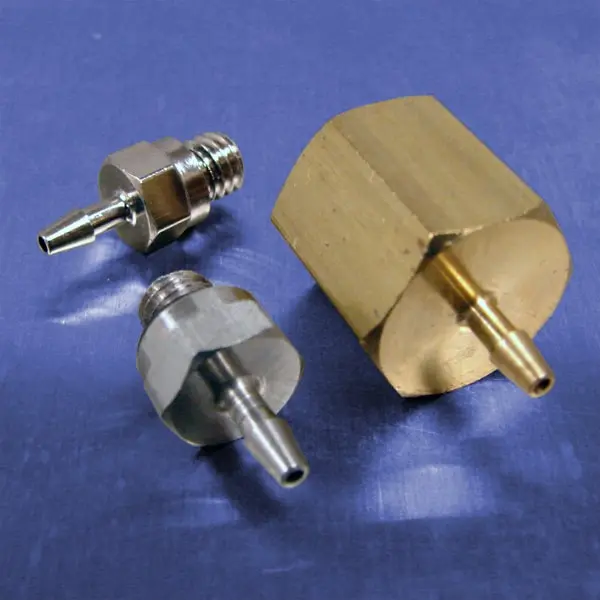

Click image to enlarge

Pneumadyne manufactures several variations of fittings to meet your connection needs. Our high quality captured o-ring design provides a superior seal that ensures a leakproof fit even when mated with a less than perfect sealing surface. The tapered thread design of the BF-062 produces a seal similar to pipe thread and also allows for a larger than normal hole permitting more flow.

Features
  • Electroless nickel plated for corrosion resistance
  • High quality, precision machined fittings
  • Captured o-ring seal for superior seal
  • Metal-to-metal mechanical fit
  • Tapered thread allows for a larger orifices

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

ProductsReturn to Top

Narrow Your Results By:

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
