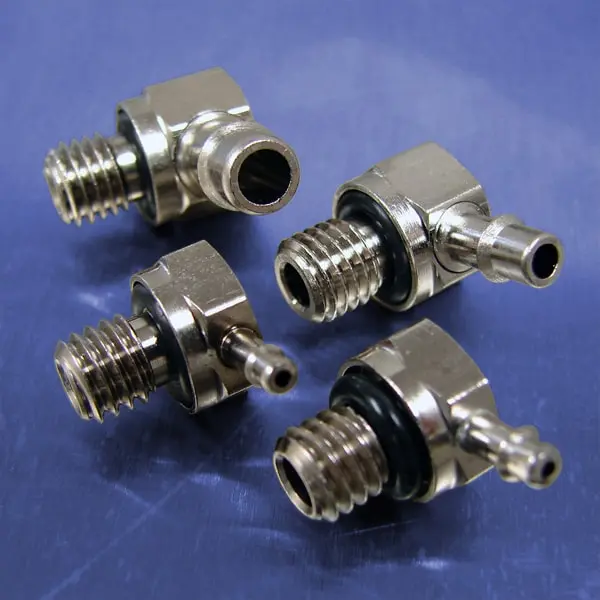

1/4-28 UNF Thread to Barb Elbow Fittings

Click image to enlarge

Seven barb sizes are available on our Fixed Elbows to accommodate your tubing requirements. Our consistently sharp, single-barb design provides a tighter grip and seal than traditional multiple barb fittings resulting in a permanent polyurethane tubing installation. Solderless joint technology eliminates pull-out potential and ensures straight barb alignment.

Our popular o-ring design provides a superior seal for a leak resistant fitting even when mated with a less than perfect sealing surface. These precision machined fittings are electroless nickel plated for corrosion resistance.

Features
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Recommended for use with Polyurethane tubing
  • Electroless nickel plated for corrosion resistance
  • High quality, precision machined fittings

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
