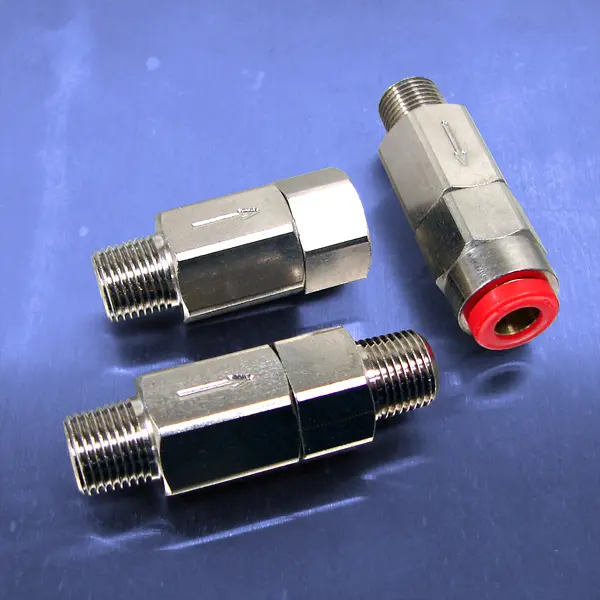

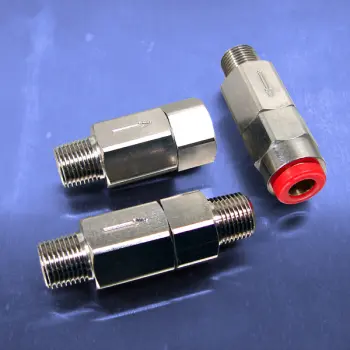

1/8 NPT Input Port (Check Valves)

Click image to enlarge

Check valves are installed in pneumatic circuits which require free flow in one direction and no flow in the opposite direction. Pneumadyne offers several porting options to fit plumbing requirements.

Features

Durable brass construction
Electroless nickel plated for corrosion resistance
Low cracking pressure
High flow rate

Product Files
CAD Library
Performance Data
Products

Product FilesReturn to Top

Catalog Information
Check Valve Cross Section
Performance Data Spec Sheet

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

Operating Pressure: 0 to 125 psi
Flow Rate: Ranges from 24.5 to 31.5 scfm at 125 psi depending upon valve selected.
