1/8 NPT Thread to Barb Elbow Fittings

Click image to enlarge

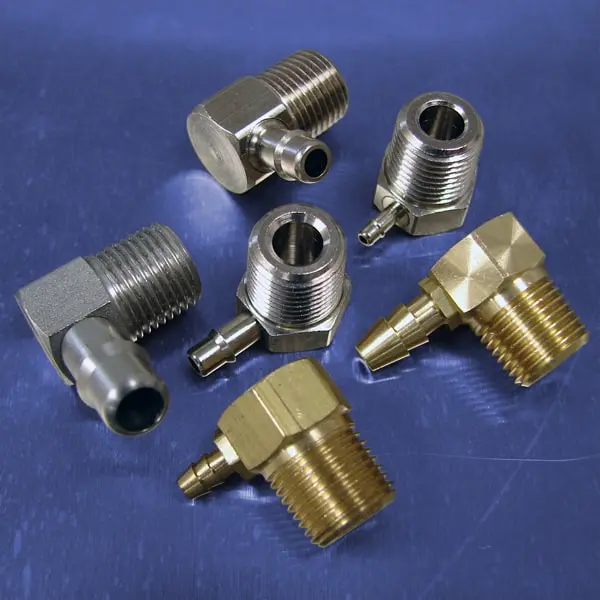

Pneumadyne manufactures two styles of Fixed Elbows to accommodate application requirements. Our Pneu-Edge® fittings (part numbers begin with ELB) feature a single-barb design for a permanent tubing installation without the need for clamps. These precision machined fittings are electroless nickel plated for corrosion resistance. Our conventional fittings (part numbers start with BF) feature a multiple barb style and are rugged brass.

Features
  • Recommended for use with Polyurethane tubing
  • Variety of barb sizes to fit tubing requirements
  • Precision machined
  • High quality

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Product FilesReturn to Top



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
