1/8 Tube Id Barb Straight Connectors (10-32 UNF)

Click image to enlarge

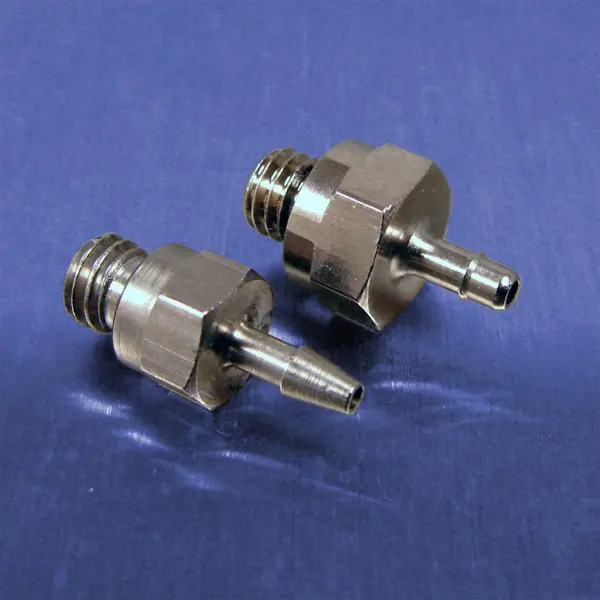

Several varieties of Straight Connector fittings are offered to meet your application requirements. These precision machined brass fittings are electroless nickel plated for corrosion resistance (exception: BF-140). Our captured o-ring design provides a superior seal and the reliability of a metal-to-metal fit. Part number BF-140 features a tapered 10-32 thread which seals similar to a pipe thread and allows a larger orifice for higher flow.

Features
  • Electroless nickel plated for corrosion resistance
  • Captured o-ring design
  • Precision machined brass
  • Reliability of a metal-to-metal mechanical fit
  • Tapered thread allows for a larger orifice

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

ProductsReturn to Top

Narrow Your Results By:

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
