5/64 Tube Id Adjustable Elbows (10-32)

Click image to enlarge

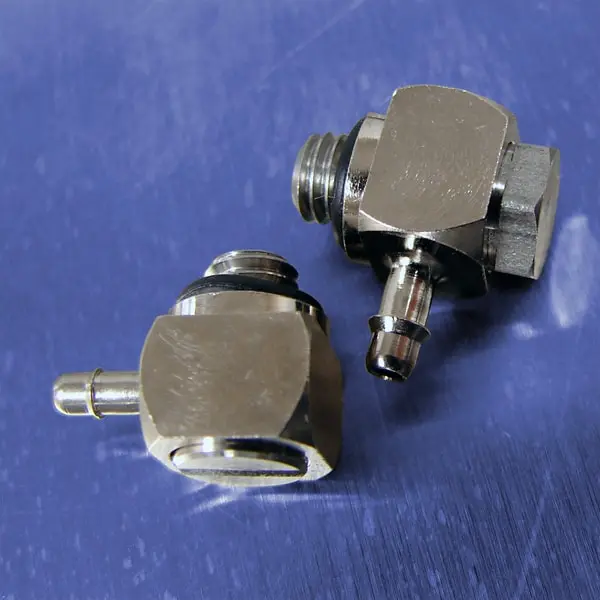

Pneumadyne manufactures two styles of Adjustable Elbows to accommodate application requirements and ease installation. The low profile, slotted version (part number EA-LB20-SLOT) is ideal for limited space applications.

Our Pneu-Edge® Elbows feature a single-barb design which provides a tighter grip and seal than traditional multiple barb fittings. Polyurethane tubing relaxes on the shank behind the barb, ensuring a permanent installation without the need for clamps. Pneumadyne's captured o-ring provides a superior seal for a leak resistant fitting.

Features
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Recommended for use with Polyurethane tubing
  • Precision machined, high quality fittings

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
