Home > Valves & Accessories > Stainless Steel Pneumatic Control Valves > 2-Way Normally Closed > Ball (Stainless Steel 2-Way Valves)

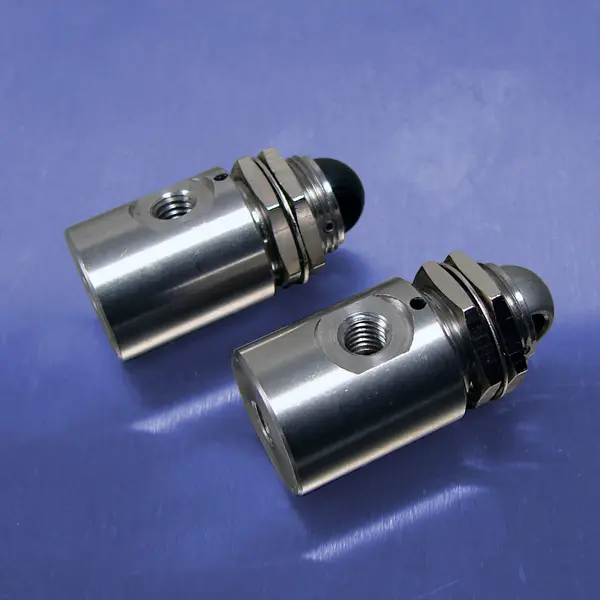

Ball (Stainless Steel 2-Way Valves)

Click image to enlarge

Ideal for use as a pilot actuating device or basic on/off functions, Pneumadyne's Stainless Steel 2-way valves feature 10-32 (F) ports and can be used with vacuum to 26" Hg. The compact size accommodates space constrained applications and offers a flow rate of 15.5 scfm at 125 psi.

Features
  • Nylon or stainless steel ball actuator
  • 303 Stainless Steel valve body
  • Suitable for use with vacuum to 26" Hg
  • Compact size
  • Single stem design
  • Nuts and lockwasher provided

ProductsReturn to Top

Narrow Your Results By:

Product FilesReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 26" Hg to 125 psi
  • Flow Rate: 15.5 scfm at 125 psi

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
