M5 Threads (Straight Connector Fittings)

Click image to enlarge

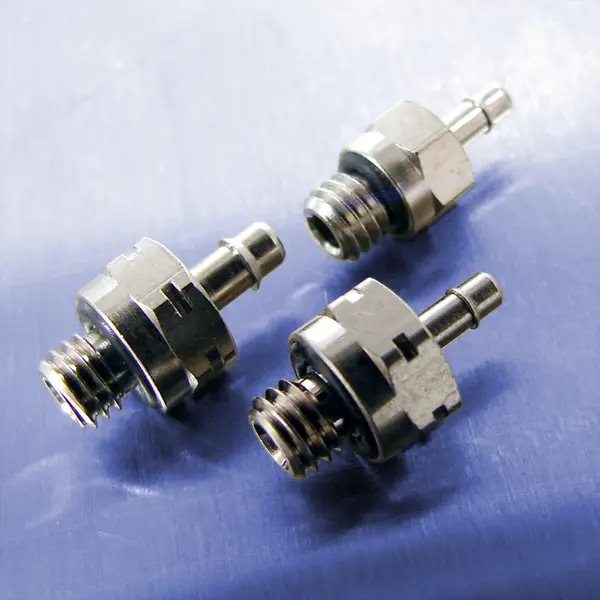

Pneumadyne's Straight Connectors with M5 threads are available with barb sizes ranging from 1/16 to .170 tube Id. The single-barb design provides a tighter grip and seal than multiple barb fittings. Polyurethane tubing relaxes behind the barb ensuring permanent installation without the need for clamps. Our captured o-ring design provides a superior seal and ensures a leak resistant fitting.

Features
  • Precision machined, high quality fittings
  • Electroless nickel plated for corrosion resistance
  • Smoother approach angle eases tubing installation
  • Captured o-ring design provides a superior seal

Product FilesReturn to Top

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information



Compliance
WarningWarning: Cancer and Reproductive Harm - www.P65warnings.ca.gov
