M6 Threads (Elbow Fittings)

Click image to enlarge

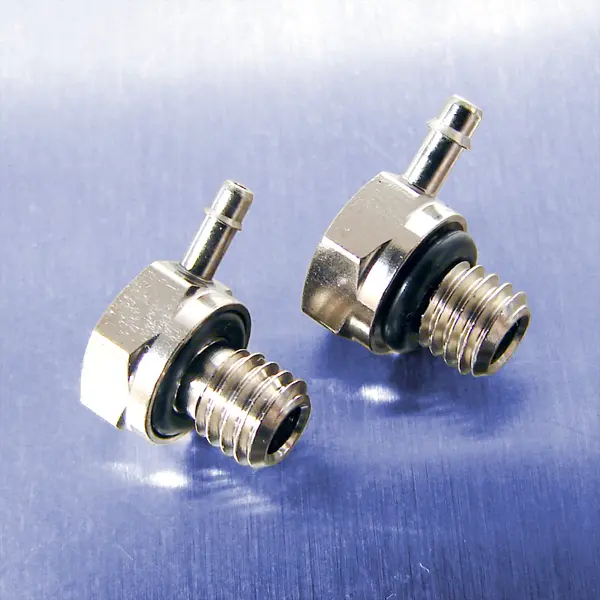

A variety of barb sizes are offered on Pneumadyne's Pneu-Edge® Elbows with M6 threads to fit application requirements. Our popular single-barb design provides a tighter grip and seal than standard multiple barbs. A smaller shank behind the barb allows polyurethane tubing to relax, ensuring permanent installation. The captured o-ring produces a superior seal and ensures a leak resistant fitting even when mated with a less than perfect sealing surface.

Features
  • Electroless nickel plated for corrosion resistance
  • Precision machined, high quality fittings
  • Smoother approach angle eases tubing installation
  • Recommended for use with Polyurethane tubing
  • Captured o-ring design ensures a leak resistant fitting

ProductsReturn to Top

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
