Home > Pneumatic Fittings > Metric Fittings > Plugs > Plugs (Metric Fittings)

Plugs (Metric Fittings)

Click image to enlarge

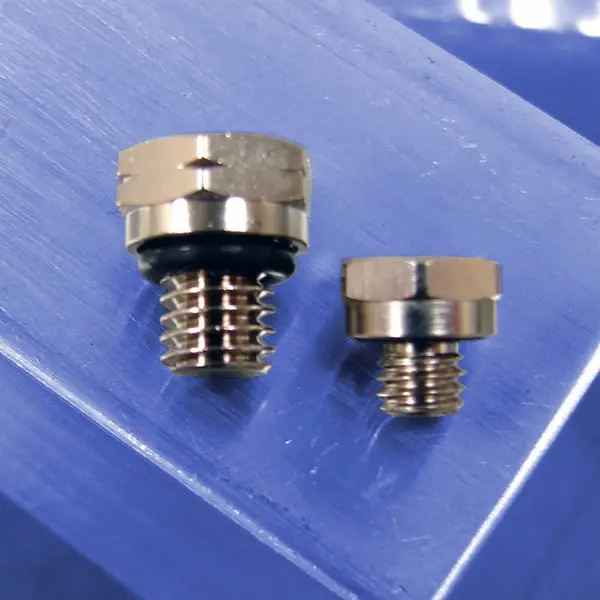

Miniature pneumatic plugs are available with M3, M5 and M6 threads to accommodate your application needs. These precision machined fittings are electroless nickel plated for corrosion resistance. A nylon gasket is installed with the M3 thread. Our captured o-ring design is incorporated with the M5 & M6 threads for a superior seal.

Features
  • Precision machined, high quality fittings
  • Electroless nickel plated for corrosion resistance
  • M3, M5 & M6 threads
  • Screwdriver slot for easy adjustment

Product FilesReturn to Top

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi



Compliance
