Push Button (10-32 F, 4-Way Valves)

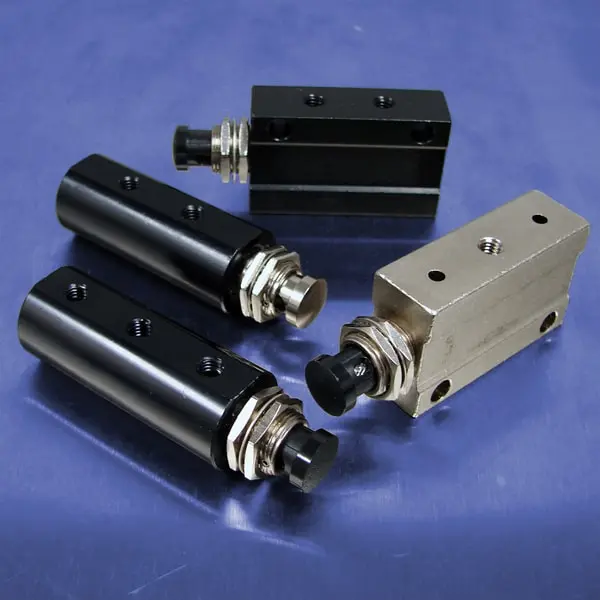

Click image to enlarge

Pneumadyne manufactures two complete series of 4-way valves with multiple actuator and porting options.



"4" Series valves, part numbers A4C-100-SR & A4N-100-SR, are 3 Port 2 Position (3/2) valves with 10-32 (F) input and output ports. The non-threaded exhaust port relieves pressure to atmosphere.



Our "45" Series valves, part numbers AP45-100-SR and AM45-100-SR, are 5 Port 2 Position (5/2) 4-way valves. The 10-32 (F) exhaust ports can be used to capture and remove exhaust flow from the application. Durable nylon and metal push buttons are offered to fit actuation requirements.

Features
  • 4-Way 2-Position function
  • Durable nylon or metal push button actuators
  • Black anodized or electroless nickel plated for corrosion resistance.
  • Panel or surface mount
  • Nuts and lockwasher provided

ProductsReturn to Top

Performance DataReturn to Top

  • Operating Pressure: 0 to 125 psi
  • Flow Rate: Ranges from 10.9 to 17.3 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.
