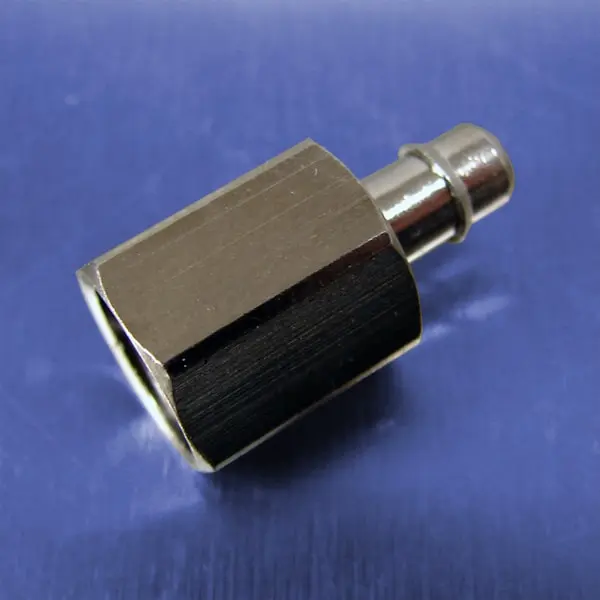

.170 Tube Id Barb Straight Connectors (1/8 NPT F)

Click image to enlarge

The single-barb design of Pneumadyne's Pneu-Edge® fittings provides a tighter grip and seal than standard multiple barbs. A smaller shank behind the barb allows polyurethane tubing to relax, ensuring permanent installation without the needf for clamps. A smoother tubing approach angle also eases installation. These precision machined fittings are electroless nickel plated for corrosion resistance.

Features
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Smoother approach angle eases tubing installation
  • Tighter grip and seal than multiple barbs
  • High quality, precision machined fittings

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
