3/16 Tube Id Barb Straight Connectors (10-32 UNF)

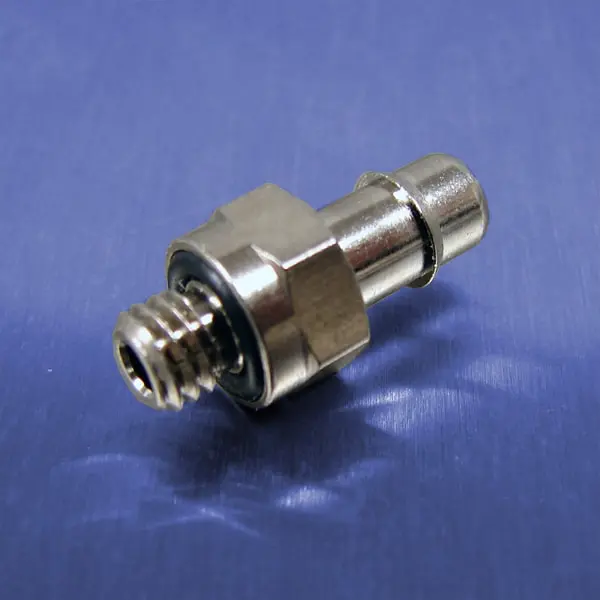

Click image to enlarge

Pneumadyne Straight Connectors feature a consistently sharp, single barb design which provides a tighter grip and seal than standard multiple barbs. Our captured o-ring design provides a superior seal which ensures a leak resistant fitting even when in stalled in a less than perfect sealing surface. These precision machined fittings are electroless nickel plated for corrosion resistance.

Features
  • Captured o-ring design provides a superior seal
  • Smaller shank provides a tighter grip and seal
  • Larger thru-hole for maximized flow
  • Electroless nickel plated
  • Consistently sharp, single-barb

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

ProductsReturn to Top

Narrow Your Results By:

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information

Product FilesReturn to Top



Compliance
