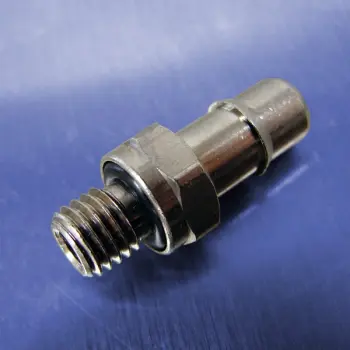

3/16 Tube Id Barb Straight Connectors (1/4-28 UNF)

Click image to enlarge

Pneumadyne's single-barb fittings provide a tighter grip and seal and traditional multiple barbs ensuring a more permanent polyurethane tubing installation without the need for clamps. Our captured o-ring design provides a superior seal for a leak resistant fitting even when installed in a less than perfect sealing surface. The precision machined brass fittings are electroless nickel plated for corrosion resistance.

Features
  • Smoother tubing approach angle eases installation
  • Larger thru-hole for maximized flow
  • Electroless nickel plated for corrosion resistance
  • Captured o-ring design provides a superior seal
  • High quality, precision machined fittings

ProductsReturn to Top

Narrow Your Results By:

CAD LibraryReturn to Top

Click here to search for and download a CAD model of this Pneumadyne component on Bimba.com.

Performance DataReturn to Top

  • Operating Pressure: Vacuum to 125 psi
  • Flow Rate: Download Performance Data Spec Sheet for detailed information
